Week 5: Launching an DoS attack on a Wifi Network

Summary

This week we look into and launch a DOS attack on a Wireless network.

In this week:

  • I deep dive into how deauthentication works
  • I dip my toes into Bash scripting by writing and running my first script.

What is a DOS attack?

A denial of service attack is meant to shut down in a machine or network so that users who rely on them are not able to connect.

The attacker intends to deprive legitimate users of the service or resource.

In our attack, we target a wireless network that provides Wi Fi to its users and our goal is to deny the Wi Fi service to the network's users.

Points of Attack

When assessing the network, there are many points of attack.

We can attack at:

  • The modem level
  • At the client level
  • Disrupt the connection between the client and the modem

Brainstorming modem based attacks

We can disable the modem by:

  • Turning off the power
  • Physically break the device

Brainstorming client based attacks

We can limit access to the clients by:

  • Driving them out of the range of the modem
  • Disconnecting them from the network

Brainstorming connection based attacks

We can disrupt the connection by:

  • Flooding the Wi-Fi channel with noise (jamming the signal)

Evaluating the attacks

Getting physical access to the access point is usually quite difficult. This is usually because it is located in a “private” space. Home networks have their routers within the homes so we’ll need to break in or socially infiltrate it to mess around with it.

Access points in cafes and airports are usually kept in employee-only spaces (albeit with very different levels of security access)

While they may be successful, a lot of these options are very visible attacks where people can visibly see a non-employee enter a restricted area or clients being held at a distance far away from an access point.

Disconnecting clients from a network is a more anonymous way to disrupt the wireless service.

Deauthentication DOS attacks

The Deauthentication Frame

We’ve seen from earlier posts that the Wi-Fi protocol works on messages sent between a client and the access point (modem)

These messages are called “frames” and there are some that make the access point do specific tasks. Our attack focuses on one specific type of frame that commands the access point to disconnect a specific MAC address.

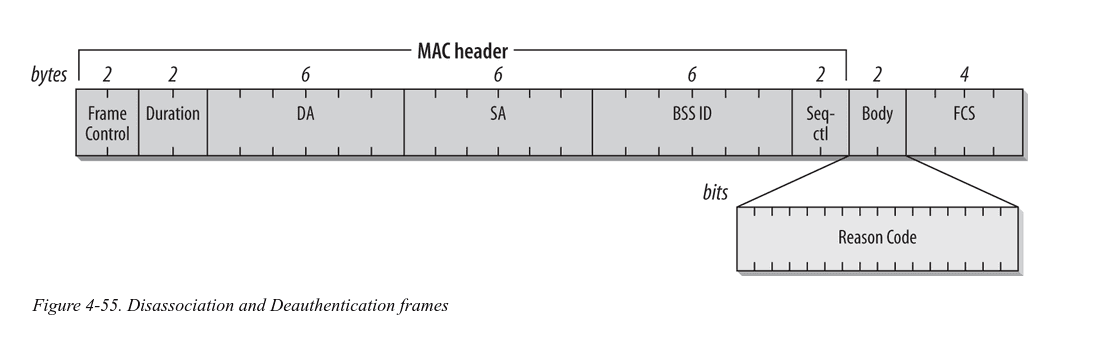

From 802.11 Wireless Networks: The Definitive Guide, 2nd Edition by Matthew S. Gast, this is what the frame data looks like

frame data

Later on, I will show how the data looks like when captured by Wireshark

Because there’s no real checks on the validity of the messages, it is easy to fake.

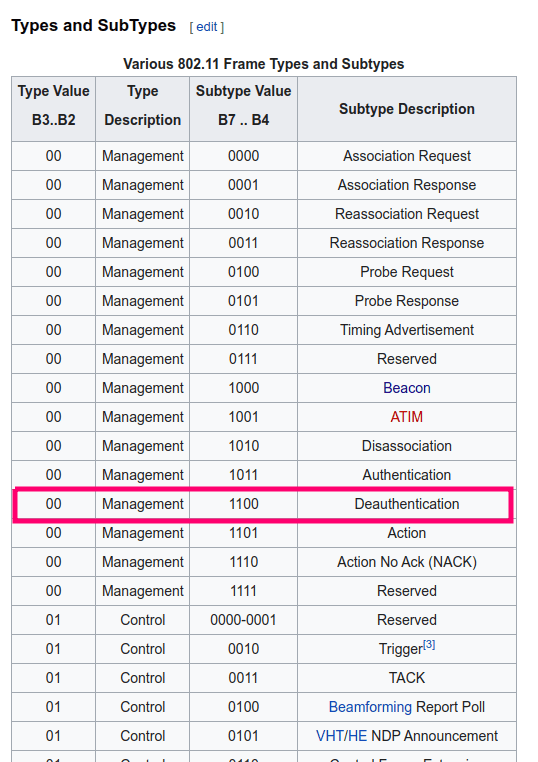

Here’s a partial list of types of frames from Wikipedia (https://en.wikipedia.org/wiki/802.11_Frame_Types#Types_and_SubTypes)

We can see the subtype value is 1100 which is what the Access Point is looking out for.

subtype value

AirReplay-NG

AirReplay-NG is pre-installed in Kali Linux which helps us do the deauthentication attack in one single line:

aireplay-ng -0 1 -a xx:xx:xx:xx:xx:xx -c yy:yy:yy:yy:yy:yy wlan1mon

  1. 0 arms deauthentication attack mode
  2. 1 is the number of deauths to send; use 0 for infinite deauths
  3. a xx:xx:xx:xx:xx:xx is the AP (access point) MAC (Media Access Control) address
  4. c yy:yy:yy:yy:yy:yy is the target client MAC address; omit to deauthenticate all clients on AP
  5. wlan0 is the NIC (Network Interface Card)

Excerpt from Wikipedia (https://en.wikipedia.org/wiki/Wi-Fi_deauthentication_attack)

The Attack

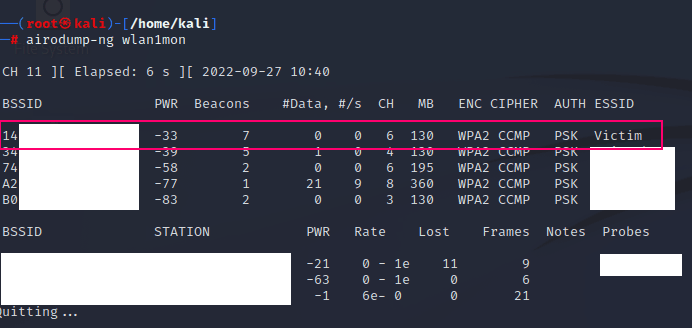

Setting up the wireless adapter to monitor for the victim network:

airodump

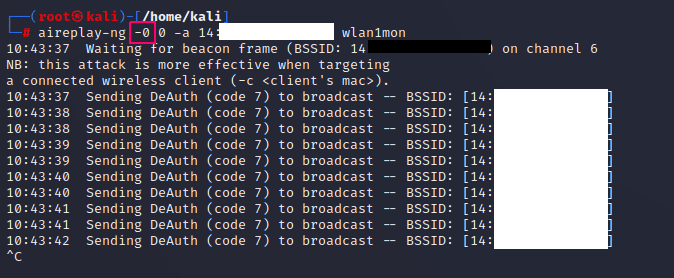

Running the attack:

aireplay

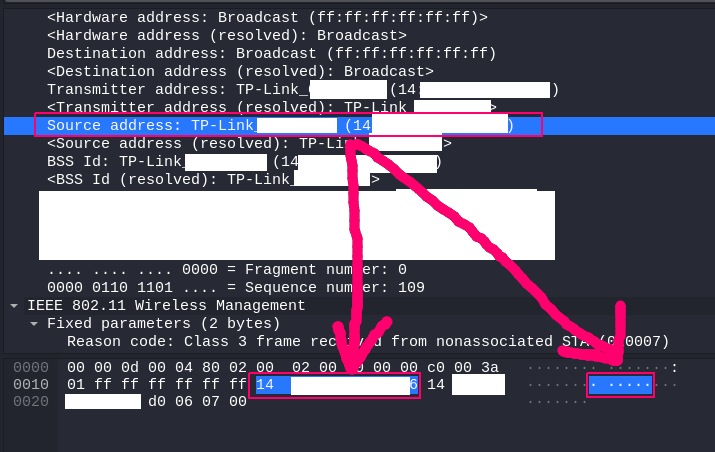

Here is the source address shown:

wireshark1

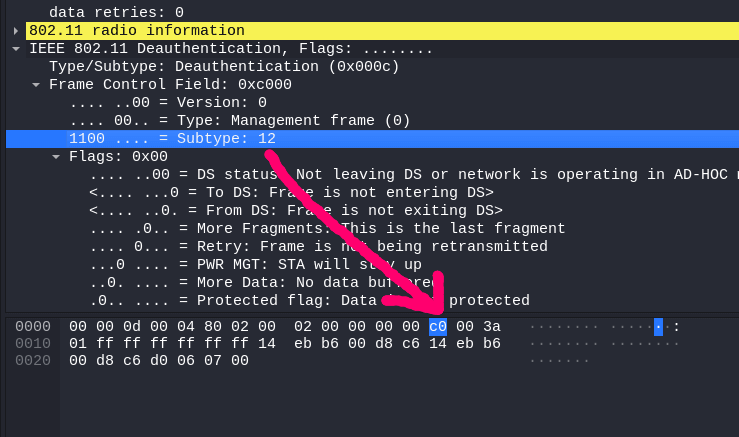

We can see the Subtype value here. I’m a little confused why c0 equates to 1100 but it seemed to work.

wireshark2

Here we can see the BSSID:

wireshark3

Running this attack was successful in disconnecting my phone from the Victim network.

Challenges

When the channel you set your wifi adapter to listen doesn’t match the AP’s channel

wrong_channel
